N A N O P R O B E S     E - N E W S

Vol. 10, No. 3          March 27, 2009

EnzMet^TM for in situ hybridization (ISH)
and Microelectrode Biochips

EnzMet^TM (enzyme metallography) is a detection and staining method in which a targeted enzymatic probe is used to selectively deposit metal from solution. For applications in optical microscopy and optical detection, it provides important advantages over conventional organic enzyme chromogen such as DAB. Advantages include:

• EnzMet^TM technology uses HRP to deposit metallic silver with extraordinary selectivity. Background is virtually zero.
• High sensitivity: detect single copies of target genes, or low-abundance proteins with almost no background.
• Virtually no diffusion of reaction product means super-sharp signals with highest resolution. Count individual gene copies.
• Black, sharply defined, non-diffusing stain lets you clearly see underlying morphology. EnzMet^TM is readily distinguished from all counterstains.
• Does not fade or bleach: can be archived indefinitely.

For clinical applications, EnzMet^TM has been licensed to Ventana Medical Systems (now part of Roche) for use as a detection system in automated slide stainers; it is marketed and sold as SISH (Silver In Situ Hybridization). It is already available in Europe and other parts of the world, and is currently awaiting FDA approval in the USA. However, if you are doing in situ hybridization without an automated slide staining platform, you can purchase EnzMet^TM reagents from us for research use.

For in situ hybridization, use EnzMet^TM HRP Detection Kit for IHC/ISH (catalog number 6001) from Nanoprobes. Complete product information, instructions and protocols for this reagent are available on our web site.

Reference:

• Powell, R. D.; Pettay, J. D.; Powell, W. C.; Roche, P. C.; Grogan, T. M.; Hainfeld, J. F., and Tubbs, R. R.: Metallographic in situ hybridization. Hum. Pathol., 38, 1145-1159 (2007).
  • Abstract (courtesy of Science Direct).

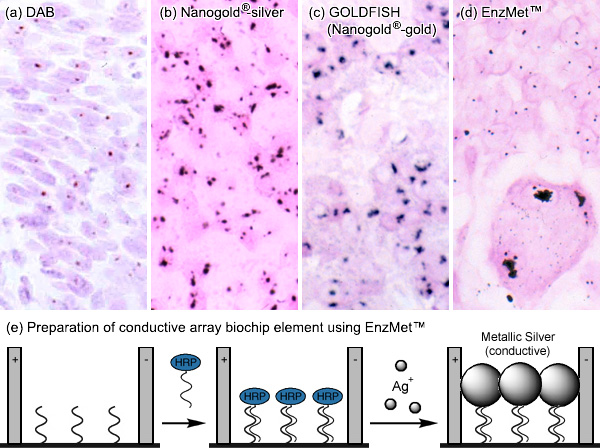

Different Nanogold and metallographic in situ hybridization methods are compared with the conventional organic chromogen, diaminobenzidine (DAB) below: you can see the evolution of metallographic chromogenic in situ hybridization, and the improvements provided by EnzMetTM. (a) and (b): Single copies of HPV-16 in SiHa cells detected by tyramide signal amplification (TSA, also known as CARD, or catalyzed reporter deposition) followed by detection with (a) streptavidin-peroxidase developed with DAB, and (b) streptavidin-Nanogold with silver acetate autometallography. Copies of HPV-16 appear as single spots. (H & E counterstain. Original magnification X 560). (c) Nanogold with gold enhancement (GOLDFISH) procedure in tissue with HER2 gene amplification, showing large, confluent nuclear signals from multiple gene copies in close proximity. Nuclear fast red counterstain (original magnification 400). (d): EnzMetTM detection of the amplification of individual HER2 gene copies in paraffin-embedded human invasive breast carcinoma biopsy; normal, non-amplified cells contain two copies of the HER2 gene, while the infiltrating HER2-amplified carcinoma cells show multiple copies (original magnification X 400. Image courtesy of Dr. R. R. Tubbs, Cleveland Clinic Foundation). (e) design of electrical detection element for use on biochips: target oligonucleotide is deposited between electrodes, then bound by a complementary enzymatic probe which is "developed" with enzyme metallography to produce a conductive connection.

EnzMet^TM for immunohistochemistry (IHC) and blotting

However, EnzMet^TM is not just for optical detection of in situ hybridization. It is also highly effective for electrical detection of DNA on biochips, where it provides improvements over silver-enhanced colloidal gold for the electrical detection of target DNA using arrays of electrodes: the principle is shown above. Now, in their recent paper in Biosensors and Bioelectronics, Schüler, Fritzsche and co-workers demonstrate that this process can be used on screen printed electrode structures for chip-based electrical detection of viral DNA (150 bp PCR products of human CMV DNA). These electrode arrays were produced on a glass substrate, making an additional optical readout possible. The screen printed structures showed the required precision, and are compatible with the applied biochemical protocols. When compared with chip substrates produced by standard photolithography, the screen printed chips showed the same sensitivity and specificity. Therefore, screen printing of electrode arrays for DNA chips for electrical detection provides an interesting and cost-efficient method for the production of DNA chips with microstructured electrodes.

If you wish to try this application for yourself, you should use EnzMet^TM HRP Detection Kit for Research Applications (catalog number 6010) from Nanoprobes. Complete product information, instructions and protocols for this reagent are available on our web site.

Reference:

• Powell, R. D.; Pettay, J. D.; Powell, W. C.; Roche, P. C.; Grogan, T. M.; Hainfeld, J. F., and Tubbs, R. R.: Screen printing as cost-efficient fabrication method for DNA-chips with electrical readout for detection of viral DNA. Biosens. Bioelectr., 24, 2077-2084 (2009).
  • Abstract (courtesy of Science Direct).

EnzMet^TM is also the ideal detection and visualization method for immunohistochemistry (IHC), and it can be used for highly sensitive detection with minimal background and very high contrast on blots. Immunohistochemical application was tested using high-complexity tissue microarrays (TMAs). 88 common solid tumors were evaluated by enzyme metallography (EnzMet) using an automated slide staining system (Ventana Medical Systems); targets were chosen to assess the ability of EnzMet to specifically localize encoded antigens in the nucleus (estrogen receptor), cytoplasm (cytokeratins), and cytoplasmic membrane (HER2) in TMAs. The intensity of staining for all three antigens evaluated was comparable for breast tumors as well as carcinomas of kidney, colon, and prostate. However, the quality of staining in EnzMet IHC preparations was much sharper, and the stain deposits were better defined, showing a more punctate appearance, than that found with DAB. Full concordance was found between the EnzMet and conventional IHC results. The EnzMet reaction product was dense and sharply defined, did not appreciably diffuse, and provided excellent high-resolution differentiation of cellular compartments in paraffin sections for the nuclear, cytoplasmic, and cell membrane-localized antigens evaluated. The higher density of elemental silver deposited during enzyme metallography permitted evaluation of core immunophenotypes at a relatively low magnification, without the need for oil immersion, allowing more tissue to be screened in an efficient manner. In addition, the signal is stable and provides a permanent record.

Reference:

• Tubbs R.; Pettay J.; Powell R.; Hicks D. G.; Roche P.; Powell W.; Grogan T., and Hainfeld, J. F.: High-resolution immunophenotyping of subcellular compartments in tissue microarrays by enzyme metallography. Appl. Immunohistochem. Mol. Morphol., 13, 371-375 (2005).
  • Abstract (courtesy of PubMed (Medline)).

For immunohistochemistry, use EnzMet EnzMet HRP Detection Kit for IHC/ISH (catalog number 6001) from Nanoprobes. Complete product information, instructions and protocols for this reagent are available online.

Left: Immunoperoxidase staining of epithelial cytokeratins in paraffin-embedded human bladder tumor: (a) secondary immunoperoxidase with DAB; and (b) secondary immunoperoxidase method using EnzMetTM (original magnification x 400). Right: Comparison of Western blot detection of his-tagged Fusion Protein using HRP conjugates developed with (c) DAB and (d) EnzMetTM. After transfer, membranes were incubated with anti-His-Tag (6xHis) monoclonal antibody, followed by BSA blocking, and then exposed to Horseradish peroxidase (HRP)-conjugated secondary antibody. The His-tagged fusion proteins were then visualized by DAB detection (Panel A) or EnzMetTM detection (Panel B). Lanes 1 and 4: 0.1 µg of 34 kDa his-tagged ATF-1. Lanes 2 and 5: 0.1 µg of 68 kDa his-tagged YY1. Lanes 3 and 6: 0.1 µg BSA and 0.1 µg ovalbumin.

In most cases, the EnzMet^TM protocol using EnzMet^TM for Blots below may be substituted for conventional DAB development without further modification of the protocol. However, because of its greater sensitivity, greater dilutions of either primary antibody or secondary probes may be required to achieve the optimum combination of sensitivity and clarity. A five-fold to ten-fold additional dilution has been found to give good results in immunohistochemical experiments and is likely to be appropriate here also.

Protocol:

1. Wash with buffer containing 0.1% Tween-20 for 3 x 5 minutes.
   Note: Phosphate buffered saline, tris buffered saline or other wash buffers can be used. Including 0.1 % (w/v) Tween-20 in the wash buffer was found to be helpful in reducing non-specific binding.

2. Wash with deionized water for 3 x 5 minutes.

3. Shake off excess water. Cover membrane with 6 mL (or 3 volumes) of EnzMet^TM Detect A. Incubate for 4 minutes.
   Note: Excess water can lead to the dilution of EnzMet^TM reagents, resulting in weak staining and results which are difficult of reproducing.

4. Add 2 mL (or 1 volume) of EnzMet^TM Detect B to the membrane, and gently mix Solutions A and B. Incubate for 4 minutes.

5. Add 2 mL (or 1 volume) of EnzMet^TM Detect C to the membrane, and gently mix Solutions A, B and C. Incubate for 9 - 25 minutes, or until satisfactory staining is achieved.
   Note: The EnzMet^TM incubation time mainly depends on the target concentrations and staining temperature. Longer incubation may be needed for visualizing low concentration targets. However, longer incubation may lead to some non specific background staining. The variation of EnzMet^TM staining temperature can affect its silver deposition rate. Lower temperature slows down the deposition process, and thus a longer staining time may be required to reach a certain degree of staining density and sensitivity.

6. Wash with deionized water for 3 x 5 minutes.

7. Air dry membrane for record.

For Western and other blotting applications, you should use EnzMet^TM EnzMet Western Blot HRP Detection Kit (catalog number 6002) from Nanoprobes. Complete product information, instructions and protocols for this reagent are available online.

Reference:

• Liu, W.; Mitra, D.; Powell, R.; Tubbs, R.; Pettay, J., and Hainfeld, J.: Enzyme Metallography Silver Deposition for HRP Detection. Presented at ASCB 2007, Washington DC, December 1-4, 2007,: Poster # B349, Presentation # 1209.

More information:

• EnzMet^TM: catalog and general information
• EnzMet^TM HRP Detection Kit for IHC/ISH: Product information and instructions
• EnzMet^TM Western Blot HRP Detection Kit: Product information and instructions
• EnzMet^TM HRP Detection Kit for Research Applications: Product information and instructions
• EnzMet^TM: Applications
• EnzMet^TM: References
• Enzyme Metallography: A Simple New Staining Method (our paper from Microscopy & Microanalysis 2002)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dispensing HQ Silver,
and Controlling Nanogold® Stoichiometry

Solving a sticky situation:
Handling HQ Silver

HQ Silver is a unique silver enhancement reagent. It contains a thickening agent which is a natural polymeric gum: this is used to modulate the rate of reaction of the mixture with gold nanoparticles. This gives the reagent a number of advantages, which result in improved performance compared with other silver enhancers, as illustrated below:

• The rate of development of particles is very uniform, and once enlarged, the silver-enhanced gold particles have a high degree of size monodispersity.

• The pH of the mixed reagent is close to neutral. This means that pH effects on tissues and cells are minimalized, and also that the reagent reacts with the highest possible proportion of gold particles. Although it develops more rapidly than LI Silver or some other silver enhancement reagents (typical development times are from 1 to 8 minutes), the reaction is controlled and precise, and final particle size may be adjusted by changing development time.

• Ionic strength is very low. This ensures minimal effect on specimen ultrastructure, and hence excellent tissue preservation.

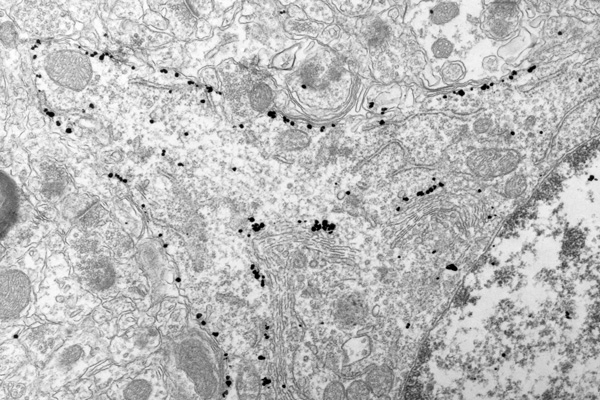

Pre-embedding immunoelectron microscopy with Nanogold® and HQ Silver. Nanogold-Fab' goat anti-rabbit IgG secondary antibody labeling the K+ channel Kv2.1 subunit in rat brain, followed by HQ Silver enhancement. Note the high density and specificity of immunostaining, even elucidating subunit localization to cytoplasmic side of cell membrane and outer stacks of the Golgi; axons and terminals are clearly negative. Work done by J. Du, J.-H. Tao-Cheng, P. Zerfas, and C. J. McBain, NIH. See Neuroscience, 84, 37-48 (1998). Bar = 1 micron.

These features make HQ Silver ideal for electron microscopy, but because of the presence of the natural thickening agent, the components are more vulnerable to microbial contamination than some other silver enhancement reagents, and their viscous nature means that you may need to use a little more care in working with this reagent. When using HQ Silver, you will obtain the best results using these tips and tricks:

• HQ Silver must be stored under conditions that do not allow microbial contamination and growth. If you plan not to use the reagent for more than a few days, the components should be stored frozen, preferably at -20°C.

• Repeated freeze-thaw cycles can degrade the performance of the thickening agent. Therefore, when you first use HQ Silver, you will obtain the best results over the lifetime of the reagent if you divide each component into aliquots, each sufficient for your typical experimental run, then freeze the unused aliquots separately. Then, each time you conduct an experiment or a series of experiments that requires HQ Silver, thaw and mix one set of aliquots.

• Because the components include different amounts of the thickening agent, they have different viscosities, and if they are dispensed quickly, it can be challenging to dispense equal amounts. You will obtain best results using an adjustable pipette set to draw and dispense the required amount, using a different tip for each component; drawing slowly will help avoid air bubbles. A positive-displacement pipette is best. A slow manual draw is actually preferable to an automatic draw since it will result in a more accurate dispense with viscous solutions. Component B ("Moderator") actually does not contain either of the components necessary for silver deposition: therefore, you will ensure the shortest delay between mixing and adding to your specimen if you dispense B first, then A and C.

• Solvents and buffers used for our products are degassed before use to eliminate dissolved oxygen and the risk of formation of bubbles. Should it be necessary to agitate the solutions, use a vortexer on a low setting rather than agitating by hand; if agitating gently for an extended period (such as with a blot or slide), use a rotating shaker on a low setting - these will introduce fewer bubbles than manual agitation.

For light microscopy and blotting applications where ultrastructural preservation and uniform particle size are not an issue, you should consider using LI Silver instead. This reagent develops more slowly, and since it is colorless and non-viscous, development can be monitored more easily by light microscopy or other optical detection methods. Alternatively, gold enhancement may give better results in some applications.

More information:

• Product information and instructions: HQ Silver
• Catalog information: Silver enhancement
• Special feature: Nanogold pre-embedding labeling
• Technical help: silver enhancement
• References sorted by application: silver enhancement
• Gold enhancement: general and catalog information

Controlling stoichiometry: Nanogold® to biomolecule ratios

We are asked quite frequently how you control the stoichiometry of Nanogold® labeling. Although our Nanogold labeling reagents are formulated to contain close to one reactive functionality per gold particle, if the biomolecule you wish to label has more than one reactive group, you may still need to consider how to avoid attaching multiple golds - particularly if you also wish to easily isolate your conjugate product. The following points will help you achieve the most precise labeling:

• Our Monomaleimido Nanogold, Mono-Sulfo-NHS-Nanogold and Monoamino Nanogold reagents are all formulated to contain close to one reactive functionality per gold particle; this is achieved through the separation of Monoamino Nanogold (the starting material for the other two reagents) over an anionic ion exchange column, which separates gold particles with different numbers of amino- groups, and in our labeling experiments, these reagents behave in a monofunctional manner. Each Nanogold particle will therefore react with only one biomolecule.

• When labeling with Nanogold, you should usually select a reaction that labels a unique functional group- i.e. one that occurs only once in your biomolecule, such as a cysteine, rather than a functional group that is present at several different sites.

• Size matters for separation: Nanogold has a molecular weight close to 15,000, but it may behave similarly to a smaller protein because the majority of its mass is from heavy gold atoms. When you label a larger biomolecule such as an antibody or protein, we recommend using a small excess of Nanogold because chromatographically, it is usually easier to separate excess smaller gold from the conjugate product than it is to separate unlabeled protein. However, since you would normally only use between 1.5 and 3 Nanogolds per biomolecule and the reaction yield is usually less than 100%, this imposes a relatively low upper limit on the number of Nanogold labels per protein.

• When labeling molecules that are similar in size to Nanogold, or smaller, you would use a ratio of Nanogold : biomolecule of close to 1 : 1, or for smaller molecules, an excess of the smaller molecule. Since the Nanogold is monofunctional, this restricts most labeling to one Nanogold per biomolecule even if the biomolecule has multiple binding sites.

• The Nanogold label is quite large: including its coordinated ligands, it has an overall molecule diameter of about 2.6 nm. Once attached, it hinders the approach of additional Nanogold reagents to nearby sites. This also favors close to a 1 : 1 ratio of Nanogold : conjugate biomolecule.

• Nanogold is not charged, but it is soluble - it is functionalized in a manner that provides solubility, so it is dissolved rather than being merely suspended. Therefore, although there is no formal repulsion between Nanogold particles in solution (unlike colloidal gold) the affinity of the Nanogold particle surface for aqueous solution ensures that they remain dissolved and separated.

One exception to this rule is NTA-Ni(II)-Nanogold, which has multiple nitrilotriacetic acid-nickel (II) functionalities in order to increase binding to polyhistidine tags through the chelate effect obtained by multiple NTA-Ni(II) : His binding. In this case, control of stoichiometry is usually achieved by using an excess of Nanogold over the His-tagged biomolecule: for a biomolecule bearing a unique His tag, the excess of Nanogold favors the formation of 1 : 1 conjugates, both because the His-tagged biomolecule has a higher probability of encountering unconjugated Nanogold, and because conjugated Nanogold is sterically hindered by the bound molecule. Should you wish to use Positively Charged Nanogold or Negatively Charged Nanogold for labeling or conjugation, similar considerations apply.

More information:

• Guide to Gold Cluster Labeling
• Nanogold labeling reagents: catalog information
• Monomaleimido Nanogold: Product information and instructions
• Mono-Sulfo-NHS-Nanogold: Product information and instructions
• Monoamino Nanogold: Product information and instructions
• Technical Help: Nanogold labeling reagents
• NTA-Ni(II)-Nanogold: general and catalog information
• NTA-Ni(II)-Nanogold: product information and instructions
• Technical help: NTA-Ni(II)-Nanogold

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NTA-Ni(II)-Nanogold®:
New Technology for High-Resolution EM and Blots

Left: Structure of Ni-NTA-Nanogold, showing the binding of the incorporated metal chelate to a His-tagged protein. Inset shows the resolution, expressed as the distance from the center of the Nanogold particle to the His tag: note that this is significantly shorter than the equivalent distance with antibodies. Right: Knob protein from adenovirus cloned with 6x-His tag, labeled with Ni-NTA-Nanogold, column purified from excess gold, and viewed in the scanning transmission electron microscope (STEM) unstained (Full width approximately 245 nm).

Ni-NTA-Nanogold™ has several significant advantages over conventional antibody probes:

• Better penetration: because it is so small, NTA-Ni(II)-Nanogold can more easily penetrate into specimens and access sterically restricted sites within specimens, and perturbs their ultrastructure less. In some systems it may be used with stronger fixation or less permeabilization, enabling labeling with better ultrastructural preservation.

• Higher labeling resolution. The nitrilotriacetic acid - Ni(II) chelate is much smaller than an antibody or protein, and therefore when it is bound, the gold is much closer to its target. This makes NTA-Ni(II)-Nanogold ideal for localizing sites in protein complexes or other macromolecular assemblies at molecular resolution.

• NTA-Ni(II)-Nanogold is prepared using a modified gold particle, with very high solubility and stability. At 1.8 nm in size, it is readily visualized by electron microscopy.
  • Our new 15nm version is directly visible under EM, with no gold or silver developing required.

• Binding constants for Ni(II)-NTA are very high due to the combination of the chelate effect of multiple histidine binding, and target binding of multiple Ni(II)-NTA functionalization. Dissociation constants are estimated to be between 10^-7 to 10^-13 M^-1. For many applications, this provides binding strengths comparable to antibodies.

Applications include:

• High-resolution labeling of proteins, protein complexes or organelles containing recombinant His-tagged proteins for EM1 or STEM2 localization.
• Labeling and molecular localization of two different subunits of Photosystem II.
• "Universal" pre-embedding labeling of His-tagged proteins in tissue sections for electron microscopic observation.
• identifying His-tagged proteins in fractions during Ni-NTA-column purifications.
• Detection of recombinant His-tagged proteins on blots and in gels.
• Heavy atom labeling of regular structures for image analysis and structure solution.

Ni-NTA-Nanogold® has found extensive application in cryoelectron microscopy. One example, included in a recent review on polysaccharide export systems in gram-negative bacteria, is the localization of domains within Wzc, a tyrosine autokinase with a central role in the coordinated biosynthesis and secretion process of the polysaccharides that make up the capsule that protects encapsulated Escherichia coli bacteria from host immune defenses. The capsule is formed from K antigenic capsular polysaccharide: its assembly and translocation require proteins in the inner and outer membranes, and the inner membrane protein, Wzc, plays a critical role: Mutants lacking Wzc are unable to polymerize high molecular weight capsular polymers. Homologs of Wzc have been identified in exopolymer biosynthesis systems in many different Gram-negative and -positive bacteria, and therefore the structure and function of this protein are of considerable interest.

NTA-Ni(II)-Nanogold was used to label Wzc with an N-terminal His tag (His6-Wzc); the Nanogold label functioned both as a heavy atom derivative to assist with phasing, and as a high-resolution label to determine the orientation of the complex within the membrane. Comparison of molecular envelopes obtained with and without Nanogold labeling showed that Wzc particles incubated with NTA-Ni(II)-Nanogold were essentially identical to those without Nanogold, but multiple gold densities were easily observed bound to the proteins. With a smaller gold-labeled data set, a second three-dimensional structure at ~22 Å resolution was generated which showed additional bound gold density contained within the volume. Nanogold was found in two locations: on the upper half of the root regions, and at the bottom of the cavity formed by the roots underneath the crown. This second location is not physically connected to the protein envelope, and therefore may represent nonspecific binding or trapped gold particles. However, the presence of Nanogold at either location suggests that the roots contain the N terminus, and hence are in the cytoplasm, while the crown is in the periplasm.

References:

• Cuthbertson, L.; Mainprize, I. L.; Naismith, J. H., and Whitfield, C.: Pivotal roles of the outer membrane polysaccharide export and polysaccharide copolymerase protein families in export of extracellular polysaccharides in gram-negative bacteria. Microbiol. Mol. Biol. Rev., 73, 155-177 (2009).
• Abstract (courtesy of Microbiology and Molecular Biology Reviews).

• Collins, R. F.; Beis, K.; Clarke, B. R.; Ford, R. C.; Hulley, M.; Naismith, J. H.; and Whitfield, C.: Periplasmic protein-protein contacts in the inner membrane protein Wzc form a tetrameric complex required for the assembly of Escherichia coli group 1 capsules. J. Biol. Chem., 281, 2144-2150 (2006).
• Abstract (courtesy of the Journal of Biological Chemistry).
• Reprint (PDF) (courtesy of the Journal of Biological Chemistry).

Goes better together:
GoldiBlot™ for His-tag detection

If you are tired of long Western blot protocols, take a look at GoldiBlot^TM, our new detection system for His-tagged proteins in Western blots and other immunoblots. GoldiBlot^TM is a new type of detection system that provides nanogram-level detection sensitivity within an hour for any protein with a polyhistidine tag. It is based on our Nickel(II)-NTA-gold (nitrilotriacetic acid - Ni(II) - gold) technology, combined with rapid autometallographic amplification, in which metal is selectively deposited onto the bound gold particles. The principle is shown below, together with results obtained for staining His-tagged proteins in a Western blot. Unlike the metal enhancement processes used for organic chromogens, this produces a clean, clear signal without the need for additional reagents or steps.
